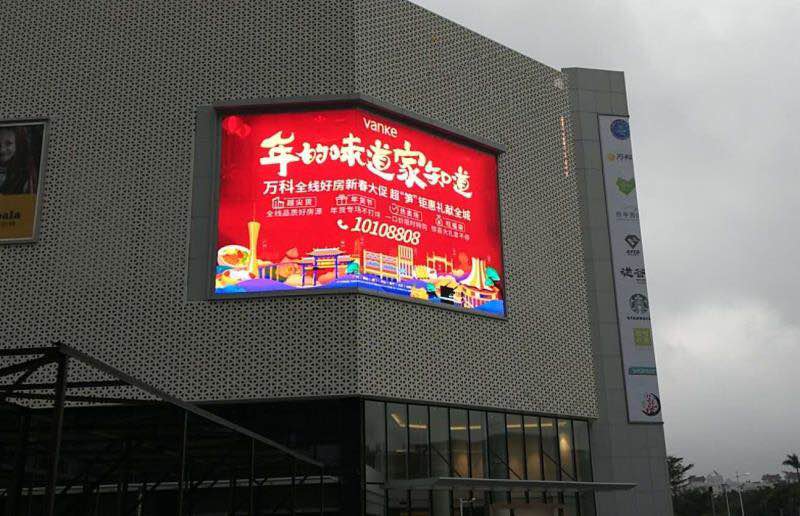

Outdoor P8 led display

Outdoor  p8 mm

Item Specification
Model P3 P4 P5 P6 P8 P10
Pixel Pitch(mm) 3 4 5 6 8 10
Physical Density(dot/m) 111111 62500 40000 27777 15625 10000
LED Configuration SMD3in 1
LED Type 5MD1921 SMD 1921 SMD 2727 5MD3535 SMD 3535 SMD 3535
Module Resolution(dot/w*h) 64x64 64x32 64x32 32x32 32x16 32x16
Module Size(mm*mm) 192x192 256x128 320x160 192x192 256x128 320x160
5tandard Cabinet Size(mm*mm) 768x768 1024x1024 960x960 768x768 1024x1024 960x960
Cabinet Resolution(dot/w*h) 256x256 256x256 192x192 128x128 128x128 96x96
Brightness lcd/m²) ≥5500 ≥6000 ≥6000 ≥6000 ≥6000 ≥6500
Refresh Rate(Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Driver Mode 1/16 1/8 1/8 1/8 1/4 1/2
Average Power Consumption(w/m²) 400-500 400-500 400-500 280-380 350-450 300-400
MaxPower Consumption(w/m²) ≤1200 ≤1200 ≤980 ≤904 ≤1020 ≤980
Input Voltage(V) AC220V50-60Hz/AC110V60Hz
Viewing Angle(deg) Horizontal≥120°Vertical 2120°
Protection IP65

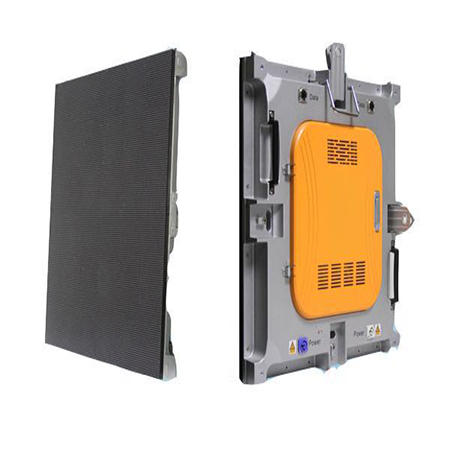

1. Ultra light weight: only 8kg, can be lifted by one hand and installed quickly

2. Ultra thin - the box body is made of die-casting aluminum, which has high strength, toughness, high precision and is not easy to deform, saving labor for transportation

3. High precision - the dimension is electromechanical machining accurate to 0.1mm

4. Compatibility - new structural design, meeting the requirements of hoisting and stacking, indoor and outdoor requirements

5. Fast: the box body is connected up, down, left and right with fast locking mechanism,

6. Reliable - high strength and hardness, good heat dissipation effect

7. Cost: the box is light in weight and low in installation cost; the box is low in power consumption, saving operation cost and reducing labor cost

Box size:


  • Product introduction
  • Product parameters

Features of Weifeng technology led rental screen:

1. Strong stability, using high-quality components and fine processing technology, effectively reducing the dead light rate. The power signal dual backup system ensures long-term stable operation and supports 7 * 24-hour uninterrupted operation.

2. Low brightness and high gray, when the brightness is reduced to 20%, it can still present perfect gray performance, and the display consistency is very good. Under low brightness, the gray level performance of the display is almost perfect, and the level sense and brightness of the display are higher than that of the traditional display.

3. High refresh rate, no fringes in HD camera.

4. Good consistency, high-strength structural fine-tuning technology to achieve seamless splicing of the whole screen. By fine-tuning, the light and dark lines are eliminated. Point by point correction technology, whole screen brightness, chroma consistency and uniformity.

5. Ultra wide viewing angle, the LED screen angle of view reaches 160 °, and the pictures of each angle are even, clear and natural.

6. Low reflective, with black fog lamp and corrugated light absorbing mask, the reflection is small in bright light environment, and the picture is still clear and visible.

7. High contrast, high-quality black lamp and corrugated light absorbing sub black mask are used, with clear and sharp images and bright colors.
