| Item | Specification | ||||||
| Model | P3 | P4 | P5 | P6 | P8 | P10 | |
| Pixel Pitch(mm) | 3 | 4 | 5 | 6 | 8 | 10 | |
| Physical Density(dot/m) | 111111 | 62500 | 40000 | 27777 | 15625 | 10000 | |
| LED Configuration | SMD3in 1 | ||||||
| LED Type | 5MD1921 | SMD 1921 | SMD 2727 | 5MD3535 | SMD 3535 | SMD 3535 | |
| Module Resolution(dot/w*h) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 | |
| Module Size(mm*mm) | 192x192 | 256x128 | 320x160 | 192x192 | 256x128 | 320x160 | |
| 5tandard Cabinet Size(mm*mm) | 768x768 | 1024x1024 | 960x960 | 768x768 | 1024x1024 | 960x960 | |
| Cabinet Resolution(dot/w*h) | 256x256 | 256x256 | 192x192 | 128x128 | 128x128 | 96x96 | |
| Brightness lcd/m²) | ≥5500 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6500 | |
| GreyScale | |||||||
| Refresh Rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |
| Driver Mode | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 | |
| Average Power Consumption(w/m²) | 400-500 | 400-500 | 400-500 | 280-380 | 350-450 | 300-400 | |
| MaxPower Consumption(w/m²) | ≤1200 | ≤1200 | ≤980 | ≤904 | ≤1020 | ≤980 | |
| Input Voltage(V) | AC220V50-60Hz/AC110V60Hz | ||||||
| Viewing Angle(deg) | Horizontal≥120°Vertical 2120° | ||||||
| Protection | IP65 | ||||||

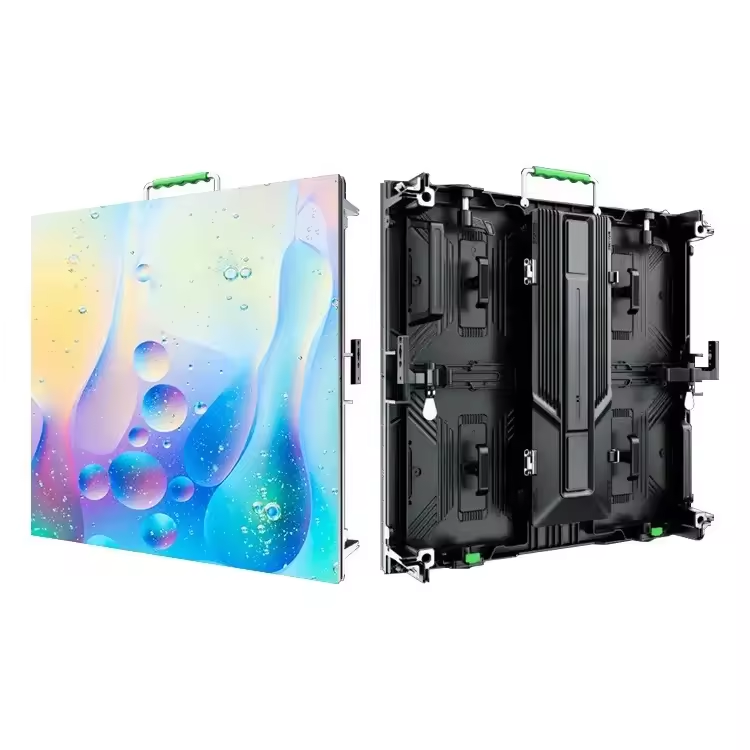

1. Ultra light weight: only 8kg, can be lifted by one hand and installed quickly
2. Ultra thin - the box body is made of die-casting aluminum, which has high strength, toughness, high precision and is not easy to deform, saving labor for transportation
3. High precision - the dimension is electromechanical machining accurate to 0.1mm
4. Compatibility - new structural design, meeting the requirements of hoisting and stacking, indoor and outdoor requirements
5. Fast: the box body is connected up, down, left and right with fast locking mechanism,
6. Reliable - high strength and hardness, good heat dissipation effect
7. Cost: the box is light in weight and low in installation cost; the box is low in power consumption, saving operation cost and reducing labor cost
500×500×70mm
Features of Weifeng technology led rental screen:
1. Strong stability, using high-quality components and fine processing technology, effectively reducing the dead light rate. The power signal dual backup system ensures long-term stable operation and supports 7 * 24-hour uninterrupted operation.
2. Low brightness and high gray, when the brightness is reduced to 20%, it can still present perfect gray performance, and the display consistency is very good. Under low brightness, the gray level performance of the display is almost perfect, and the level sense and brightness of the display are higher than that of the traditional display.
3. High refresh rate, no fringes in HD camera.
4. Good consistency, high-strength structural fine-tuning technology to achieve seamless splicing of the whole screen. By fine-tuning, the light and dark lines are eliminated. Point by point correction technology, whole screen brightness, chroma consistency and uniformity.
5. Ultra wide viewing angle, the LED screen angle of view reaches 160 °, and the pictures of each angle are even, clear and natural.
