| Item | Specification | ||||||
| Model | P3 | P4 | P5 | P6 | P8 | P10 | |
| Pixel Pitch(mm) | 3 | 4 | 5 | 6 | 8 | 10 | |
| Physical Density(dot/m) | 111111 | 62500 | 40000 | 27777 | 15625 | 10000 | |
| LED Configuration | SMD3in 1 | ||||||
| LED Type | 5MD1921 | SMD 1921 | SMD 2727 | 5MD3535 | SMD 3535 | SMD 3535 | |
| Module Resolution(dot/w*h) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 | |
| Module Size(mm*mm) | 192x192 | 256x128 | 320x160 | 192x192 | 256x128 | 320x160 | |
| 5tandard Cabinet Size(mm*mm) | 768x768 | 1024x1024 | 960x960 | 768x768 | 1024x1024 | 960x960 | |
| Cabinet Resolution(dot/w*h) | 256x256 | 256x256 | 192x192 | 128x128 | 128x128 | 96x96 | |
| Brightness lcd/m²) | ≥5500 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6500 | |
| GreyScale | |||||||
| Refresh Rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |
| Driver Mode | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 | |
| Average Power Consumption(w/m²) | 400-500 | 400-500 | 400-500 | 280-380 | 350-450 | 300-400 | |
| MaxPower Consumption(w/m²) | ≤1200 | ≤1200 | ≤980 | ≤904 | ≤1020 | ≤980 | |
| Input Voltage(V) | AC220V50-60Hz/AC110V60Hz | ||||||
| Viewing Angle(deg) | Horizontal≥120°Vertical 2120° | ||||||
| Protection | IP65 | ||||||

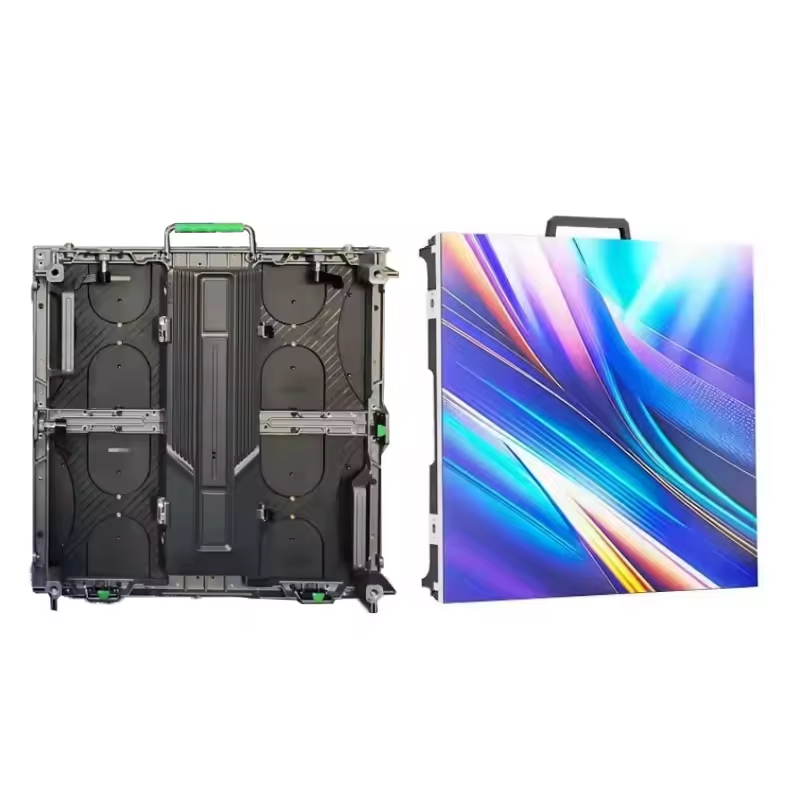

1. Ultra-light -- the weight is only 8kg, can be lifted by only one hand, quickly installation.
2. Ultra-thin -- the box is made of die-casting aluminum, with high strength, strong toughness, high precision, and not easy to deform, which saves labor for transportation.
3. High precision -- the size is electromechanical machining accurate to 0.1mm.
4. Compatibility -- the new structure design can meet the requirements of hoisting and stacking as well as indoor and outdoor requirements.
5. Fast -- the upper and lower left and right connection of the box body adopts quick locking mechanism.
6. Reliable -- high strength and hardness, good heat dissipation effect.
7. Cost -- the weight of the box is light and the installation cost is low;Low power consumption, saving operation cost and reducing labor cost.

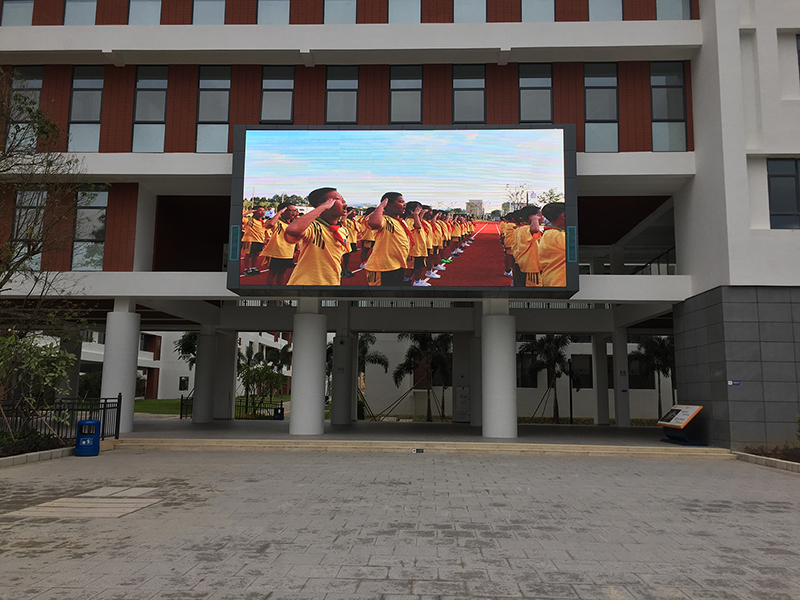

Outdoor LED full color display features:
1. Strong stability, the use of high-quality components and fine processing technology, effectively reduce the rate of dead lamp.Power signal double backup system, to ensure long time stable operation, support 7*24 hours of uninterrupted work.
2, low brightness and high gray, when the brightness is reduced to 20%, it can still present perfect gray performance, and the display consistency is very good.Under low brightness, the gray level of the display screen is almost perfect, and the level and brightness of the display screen are higher than that of the traditional display screen.
3, high refresh rate, HD HD camera shooting pictures without stripes.
4, good consistency, high strength structure fine-tuning technology, to achieve the whole screen seamless splicing.With fine tuning, eliminate the light and dark lines.Point by point correction technology, the whole screen brightness, chroma consistency and uniformity.
5. Super wide viewing Angle, LED screen viewing Angle reaches 160°, all angles of the picture uniform and clear natural.
6, low reflective, using black fog surface lamp and corrugated light absorption mask, under bright light environment reflection is small, the picture is still clearly visible.
7, high contrast, using high quality black light and corrugated light absorption subblack mask, the image is clear and sharp, bright and gorgeous color.
